技術仕様
| Pole | 1P、2P、3P、4P |
| Dimensions | 取扱説明書または選定マニュアルを参照 |
| Installation | 35mm標準レール取付 |

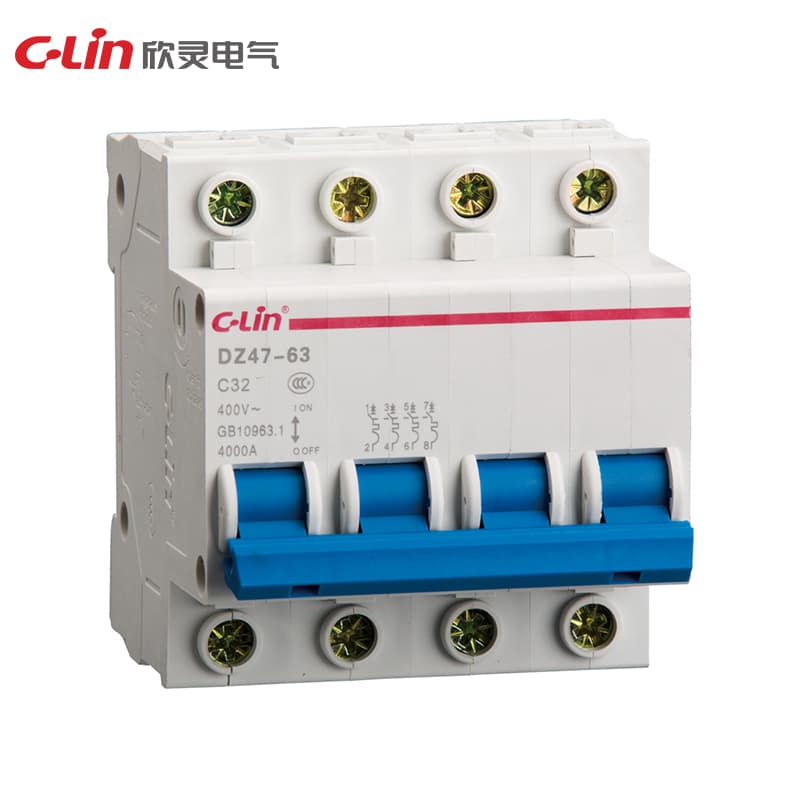

| Specification | DZ47-63 |
| Rated frequency | 50Hz |
| Working Voltage | AC230V/400V |
| Type of protection | 配電保護、モータ保護 |
| Rated operating current | 1A、2A、3A、4A、6A、10A、16A、20A、25A、32A、40A、50A、63A |
| Instantaneous release form | C形(5~10In)、D形(10~20In) |
| Product implementation standards | GB/T 10963.1 |
| Rated leakage action current (I△n) | 30mA、50mA、100mA |
| Rated short-circuit breaking capacity (Icu) | 4kA |
