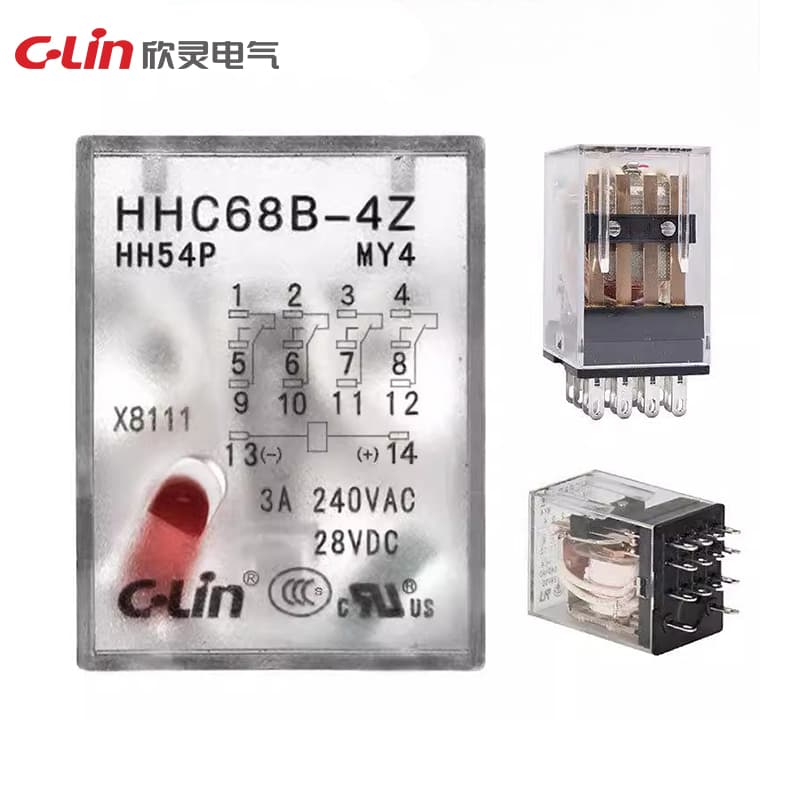

小形電磁リレー HHC68B シリーズ
Model Number: HHC68B-4Z
接点形式: 2H, 2D, 2Z 接点負荷: 5A/240VAC 28VDC コイル消費電力: DC: 0.9W; AC: 1.2VA コイル仕様: DC: 3V-220V; AC: 3V-380V 寸法: 27.3×21×35mm
見積依頼技術仕様
| Model | HHC68B-4Z |
| Coil power | DC: 0.9W, AC: 1.2VA |
| Coil voltage | DC6V-220V, AC6V-380V |
| Contact form | 2Z: 2組 NO/NC 切替, 3Z: 3組 NO/NC 切替, 4Z: 4組 NO/NC 切替 |
| Contact load | 10A/240VAC 28VDC 6.5A/240VAC 28VDC |
| Contact material | 銀合金 |
| Contact resistance | ≤100mΩ |
| Insulation resistance | ≥100MΩ(500VDC) |
